EYE XR AI Studio
A rear-mounted system combining sticker-free club data, real-time swing visuals, and AI-powered insights — unlocking a deeper level of analysis and a more connected training experience.

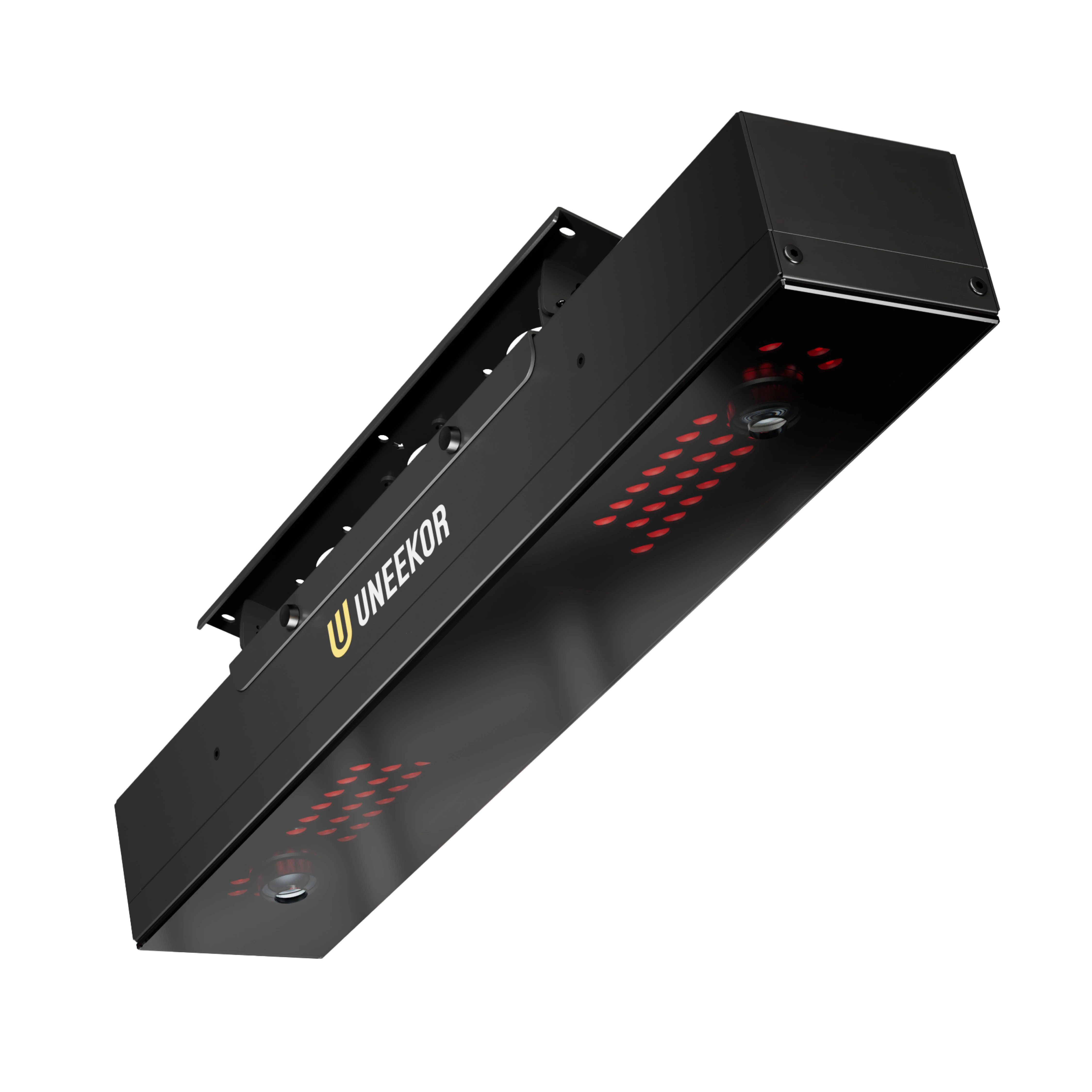

EYE XR Launch Monitor
Rear-mounted, infrared precision tracking
Swing Optix® Cameras
2 cameras included + tripods included
Complete Software Bundle Included
Includes 1 year of AI Trainer, GSPro, GAME DAY, and Pro Package
$3,928 off vs. buying separately
2-year warranty included
0% APR financing available

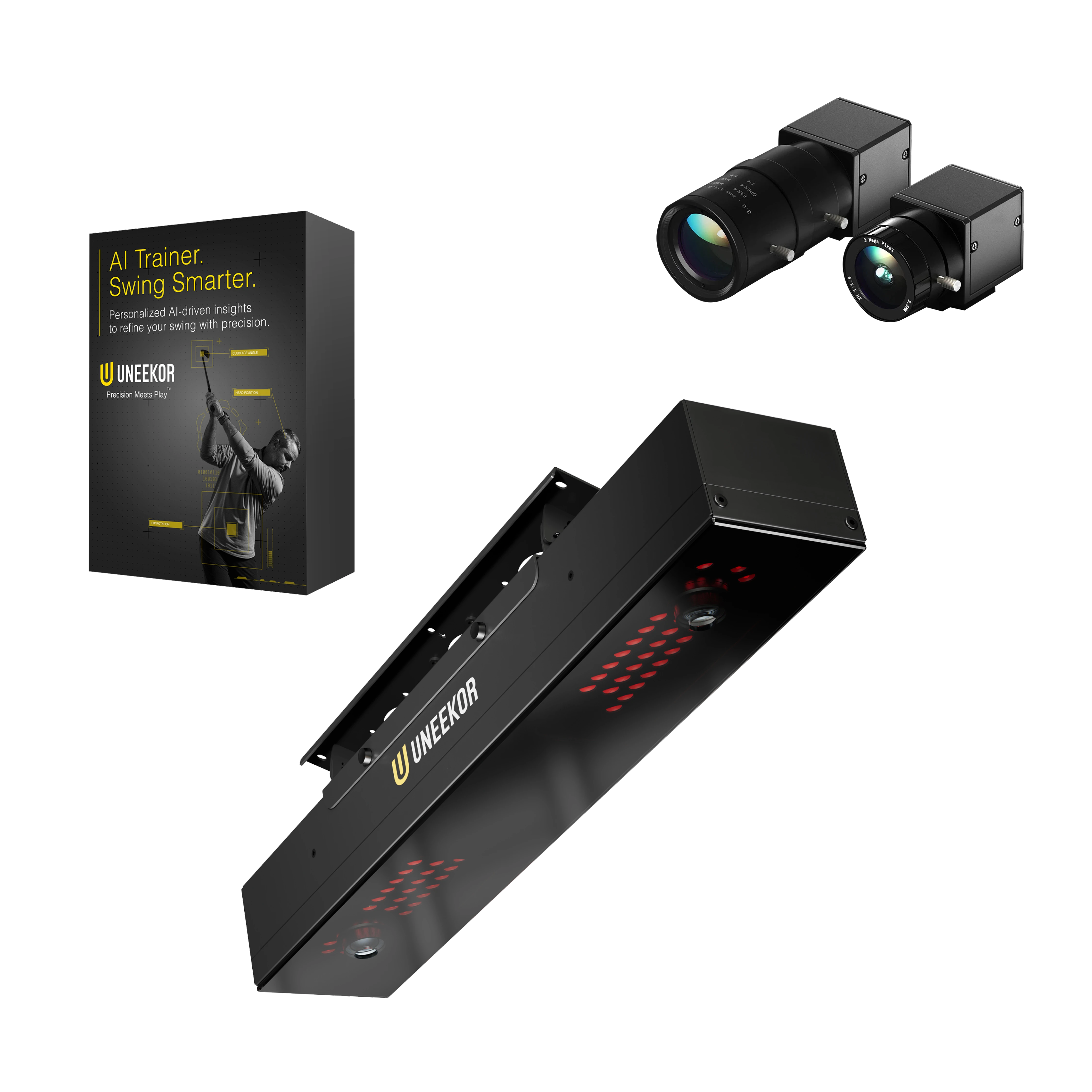

What's included

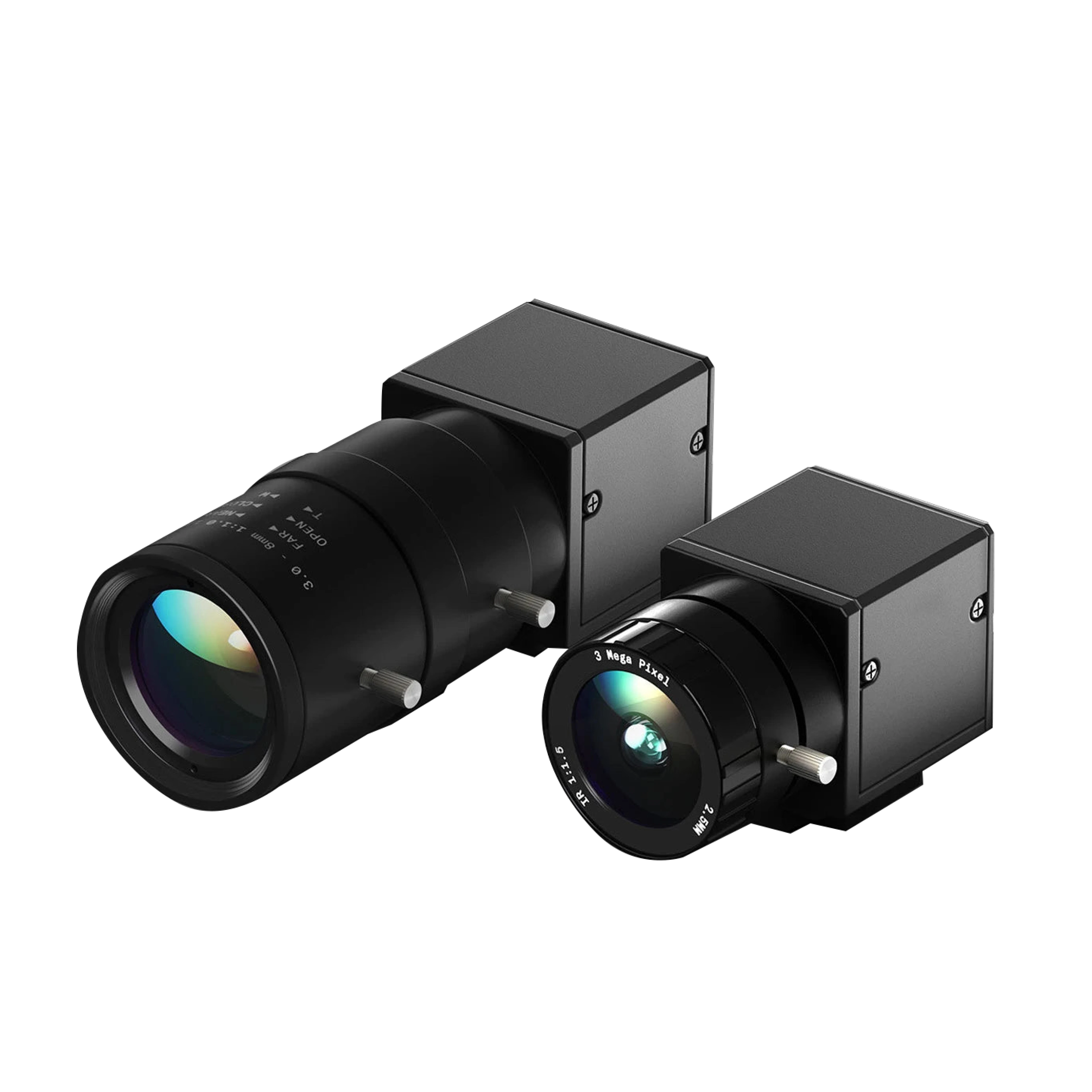

Swing Optix®
2 high-speed cameras for real-time swing replay
EYE XR
Rear-mounted launch monitor with 19 data points
Complete Software Bundle
1 year of AI Trainer, GSPro, GAME DAY, and Pro Package included
How it works
One system.
Fully connected.
Swing Optix®
Captures
High-speed video from 2 angles
EYE XR
Tracks
Ball flight, club data, 19 data points
Complete Software Bundle
INCLUDED
1 year of AI Trainer, GSPro, GAME DAY, and Pro Package
Data flows seamlessly between all three components
Features
Rear-Mounted Design
Clean, space-efficient setup that stays out of the way — giving peace of mind from errant shots.
Swing Optix®
Two angles.
Every detail.
High-speed cameras capture your full swing from two synchronized perspectives — see your mechanics in motion.

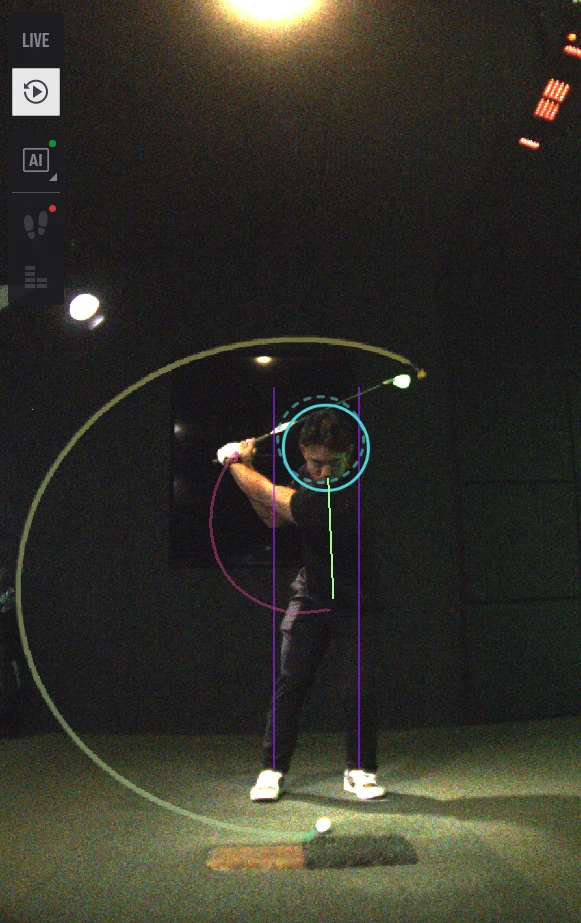

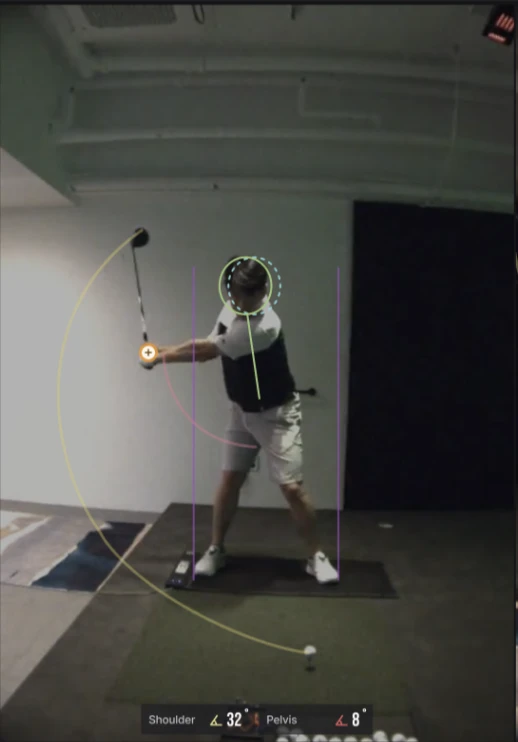

Face On

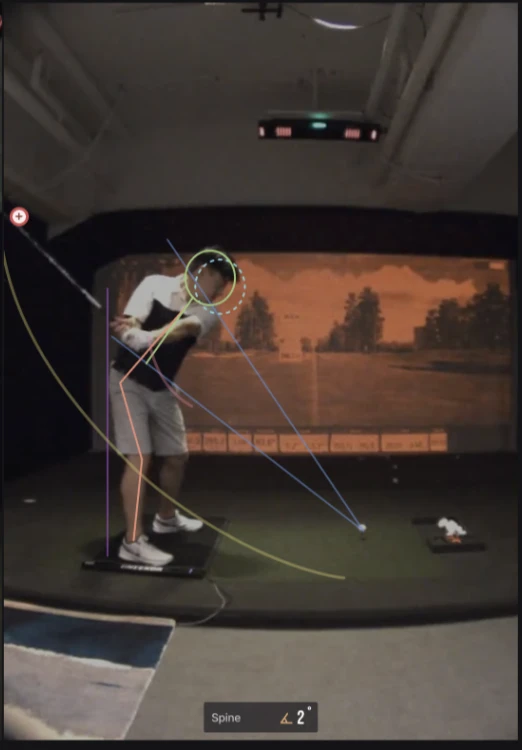

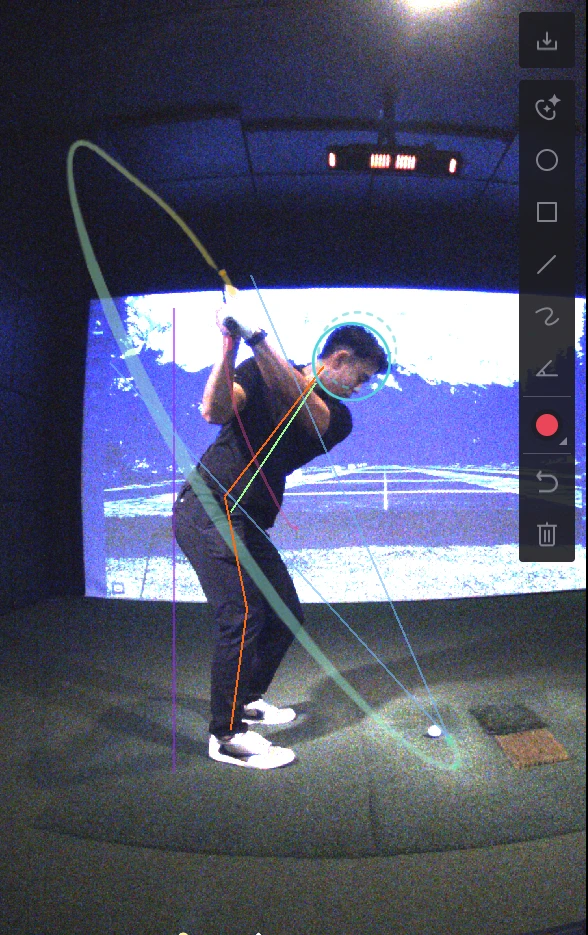

Down the Line
2
Cameras
120fps
Frame Rate
Instant
Replay
Synced
Playback
Club Optix®
The Moment of Impact.
High-speed impact replay captures club delivery and ball response at the point that matters most.
Club Delivery
Impact Zone
Ball Response
Dimple Optix® Technology
Play with the ball you trust. No special markings needed — high-speed cameras read dimple patterns for precise spin and speed data.
2,500
Frames at Impact
Sticker-Free
Club Tracking
Instant
Impact Replay
Visual
Strike Feedback

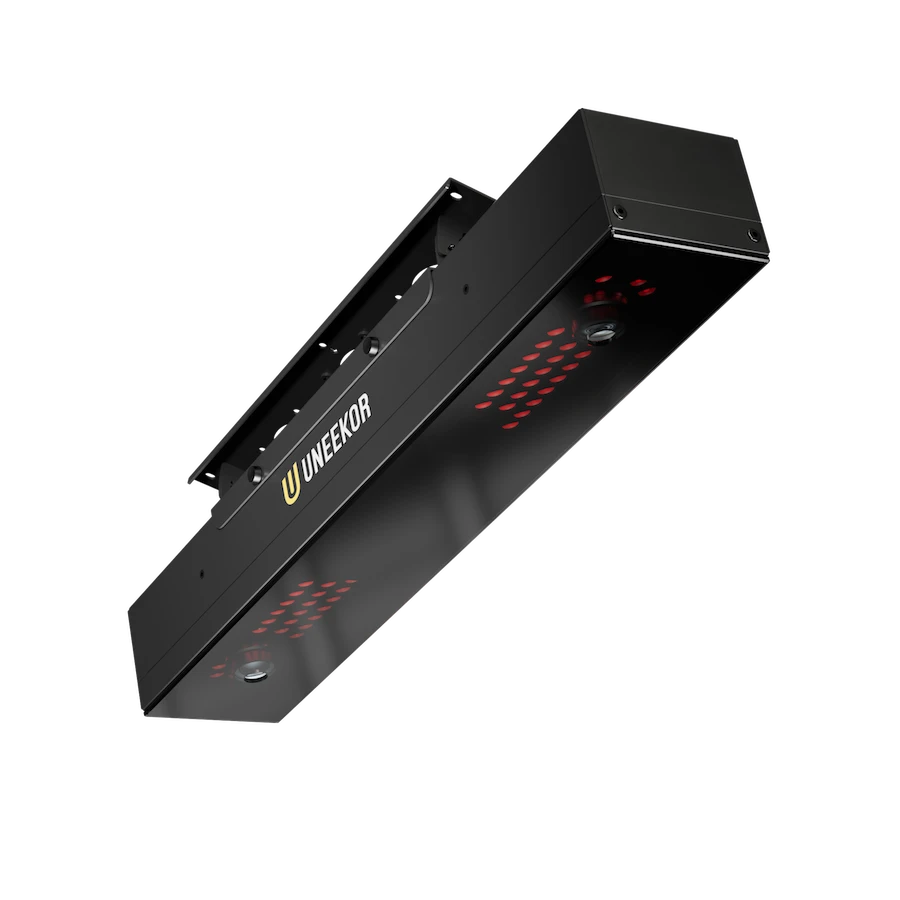

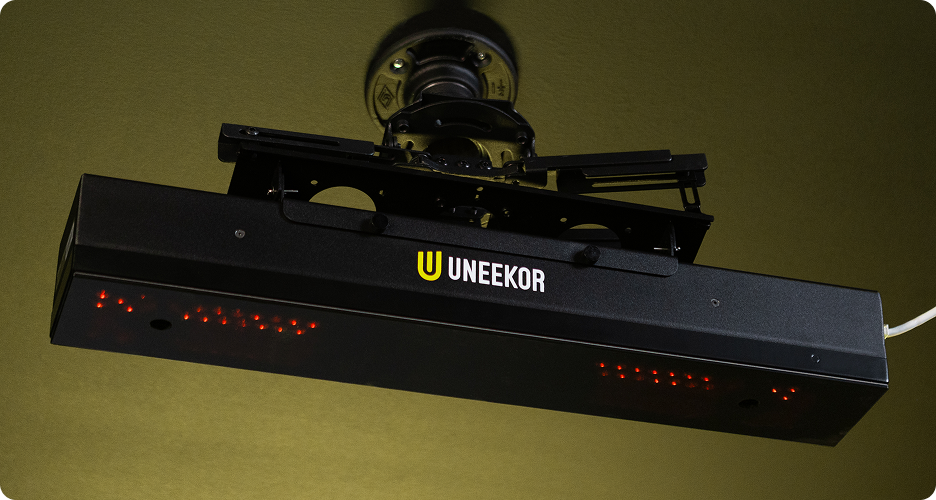

EYE XR
Rear-Mounted Precision
Ceiling-mounted behind the golfer for a clean, safe hitting zone. Advanced infrared cameras track ball and club through impact at high speed, delivering 19 data points with every swing.
Mounting
Rear Overhead
Data Points
19
Club Tracking
Stickers not required
Technology
Infrared + Dimple Optix®

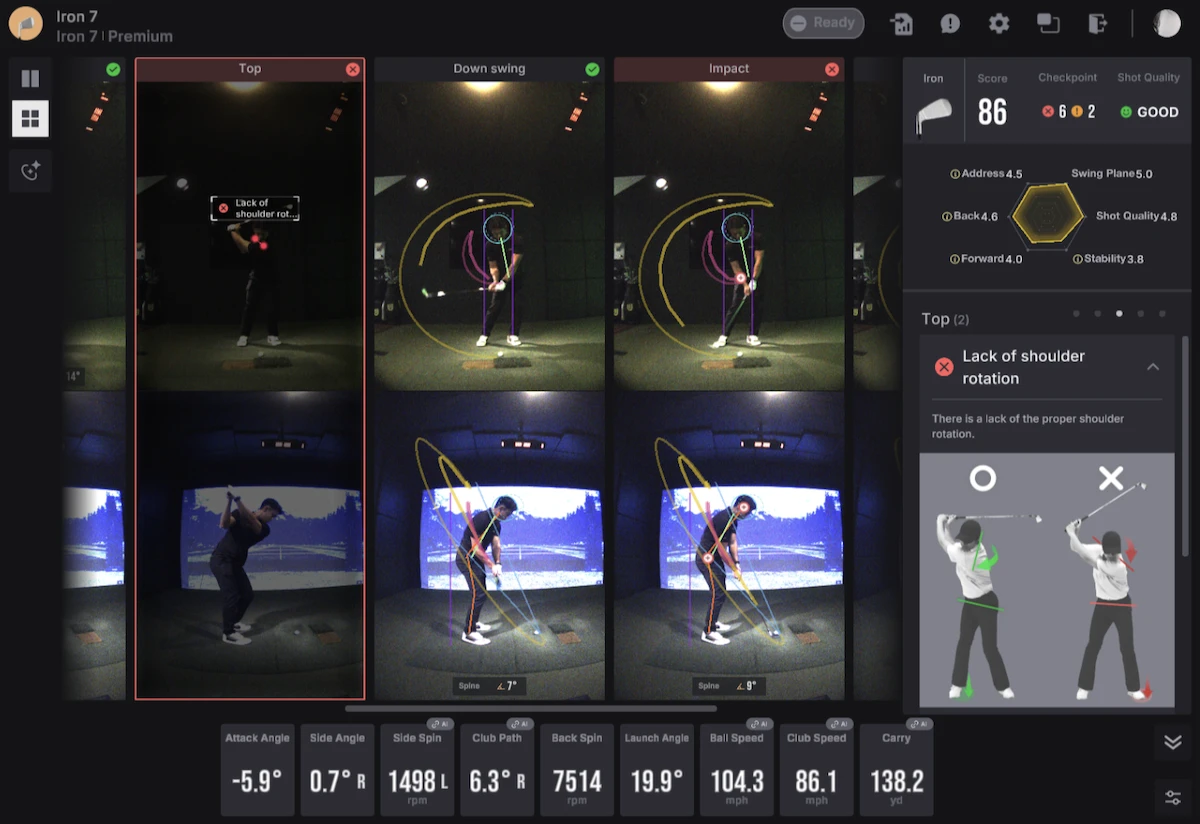

Swing Optix®
Your Swing, Frame by Frame
Two synchronized high-speed cameras capture your full swing from face-on and down-the-line simultaneously. Instant replay after every shot reveals the mechanics behind your numbers — setup, plane, transition, and release.
Cameras
2 Synchronized
Capture
High-Speed 120fps
Angles
Face-On + Down-the-Line
Replay
Instant Playback

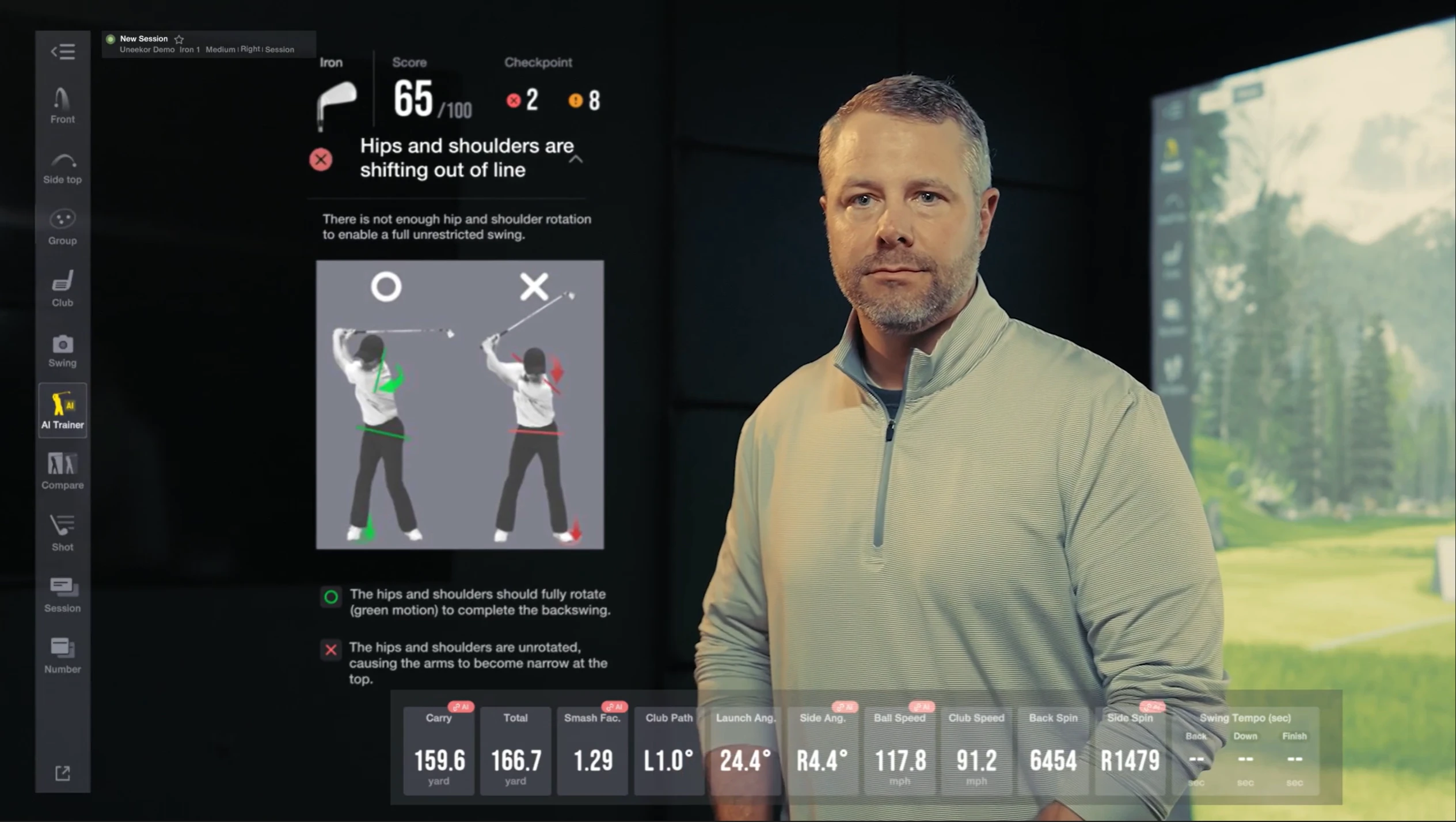

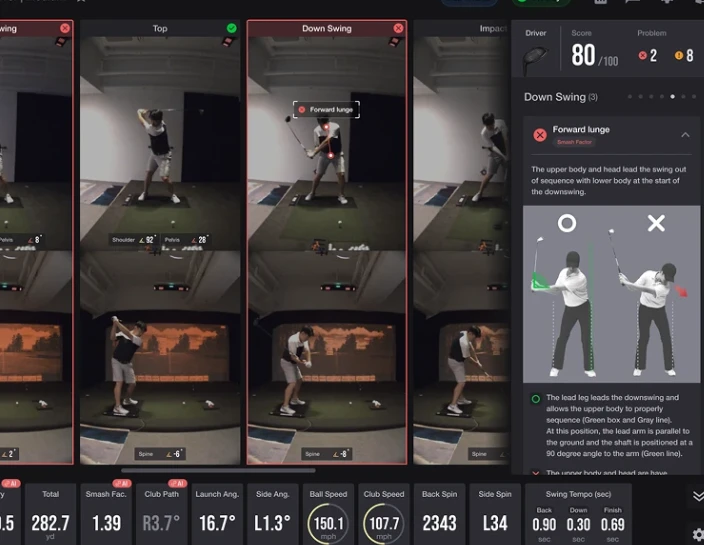

AI Trainer
Coaching That Learns From You
AI-powered analysis turns your swing data and video into personalized coaching insights. Track progress over time, get drill recommendations, and train with purpose every session.
Included
1 year
Analysis
AI-powered
Performance Tracking
Progress over time
Guided Training
Personalized drills
Championship Courses
Play Anywhere.
Anytime.
Access a growing library of world-class courses with compatible simulation software.
Alaqua Lake CC
Longwood, FL
The Farms Golf Club (Renov.)
Rancho Santa Fe, CA
Belle Selva
Japan
Blue Hill Challenger A
Canton, MA
Blue Hill Challenger B
Canton, MA
Expansive course library with new additions added regularly.
Blue Hill Championship
Canton, MA
Brookside
Pasadena, CA

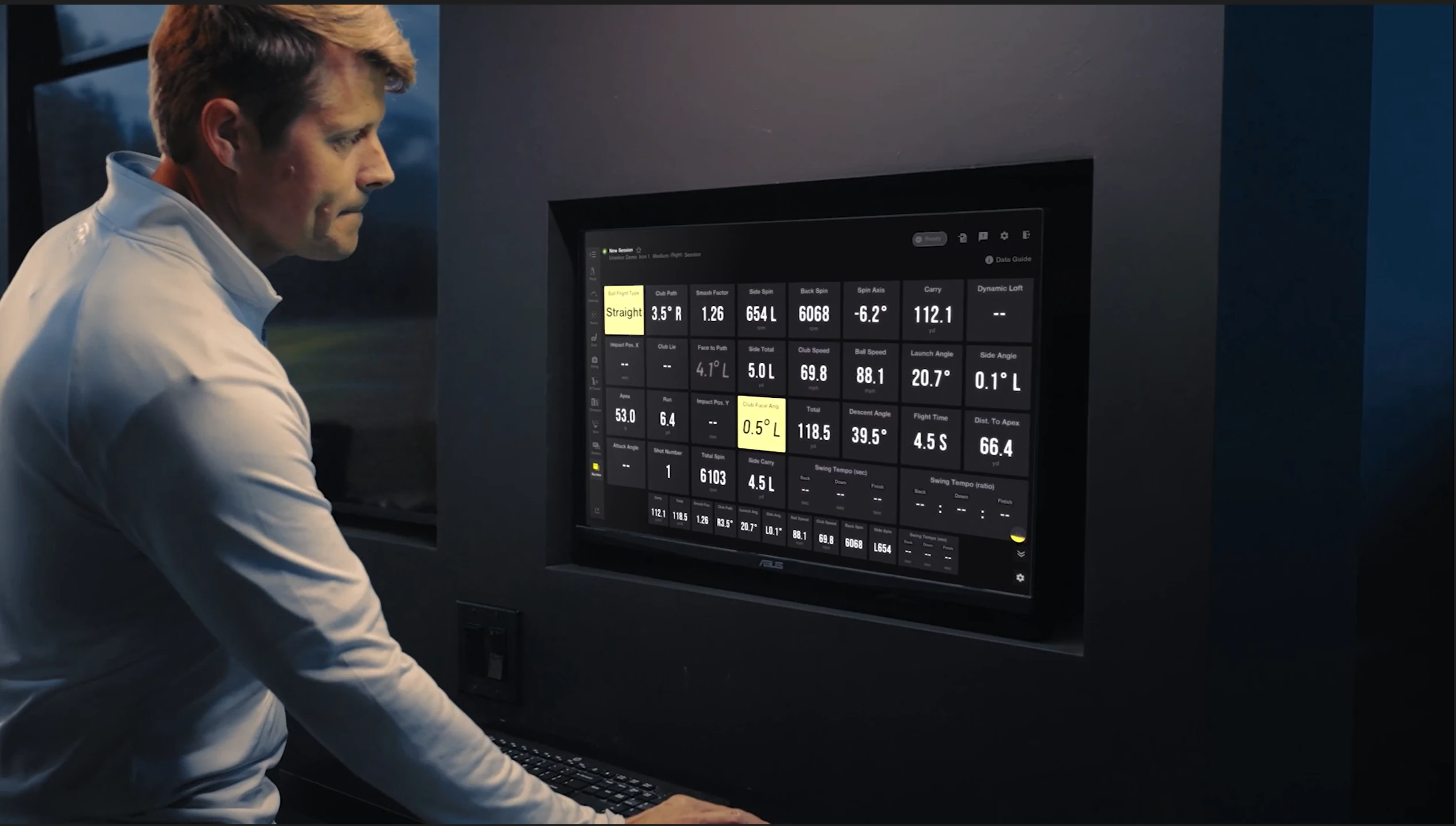

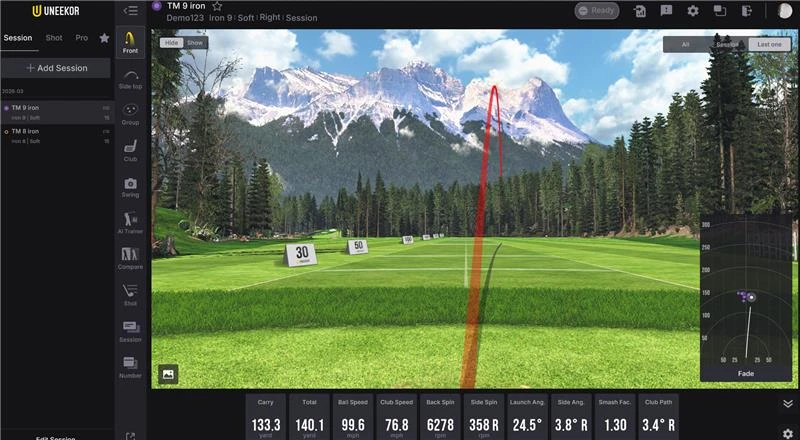

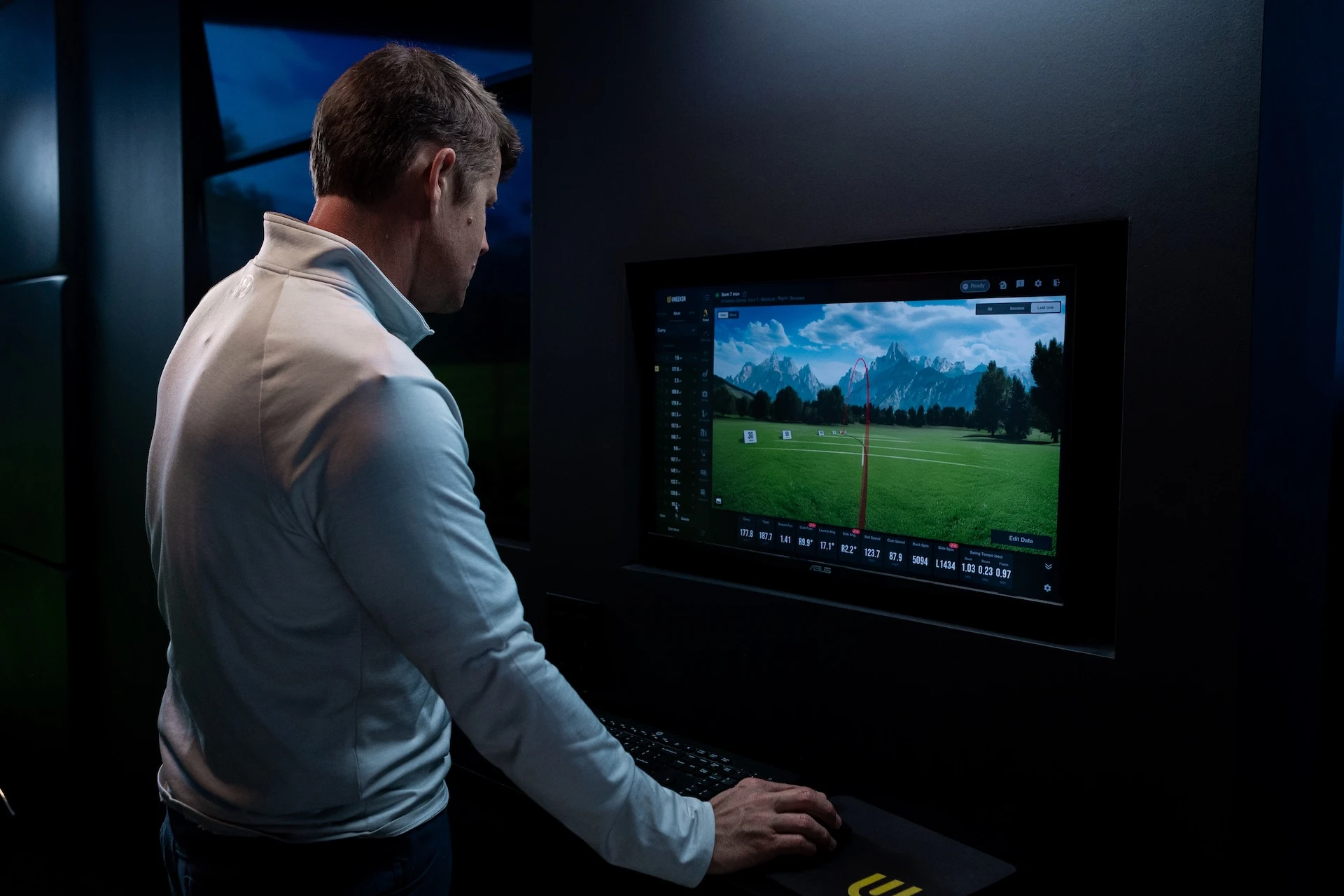

See the Data Behind Every Swing.
Ball Speed
The speed of the ball immediately after impact. Higher ball speed generally means more distance.
Launch Angle
The vertical angle at which the ball leaves the clubface. Optimal launch varies by club.
Spin Rate
Revolutions per minute of the ball after impact. Affects trajectory shape, carry distance, and stopping power.
Carry
The distance the ball travels through the air before first hitting the ground. Excludes roll.
Club Speed
How fast the clubhead is moving at the moment of impact. The primary driver of potential distance.
Smash Factor
The ratio of ball speed to club speed. A measure of strike efficiency — closer to 1.50 means a more centered hit.
Club Path
The direction the clubhead is moving at impact relative to the target line.
Face Angle
Where the clubface is pointing at impact relative to the target line. Primarily determines the ball's starting direction.
Mounting
Rear-mounted (ceiling)
Tracking Technology
High-speed infrared cameras
Club Tracking
Club AI — no stickers required
Swing Cameras
Swing Optix® (included)
Software
1 year of AI Trainer, GSPro, GAME DAY, and Pro Package included
Connectivity
Ethernet
PC Required
Yes
3rd Party Compatibility
Yes
Trouble Mat Compatible
No
Without Mounting Brakcet
22.4" L
3.9" W
3.1" H
With Mounting Brakcet
22.4" L
3.9" W
4.9" H
Hitting Zone
11.8" L
13.7" W
- ● EYE XR Launch Monitor Unit
- ● Swing Optix® Cameras (x2)
- ● 1-Year AI Trainer
- ● 1-Year GAME DAY
- ● 1-Year GSPro (Independence Day Sales Event)
- ● 1-Year Pro Package
- ● Quick Start Guide
- ● Mounting Bracket
- ● Calibration Board
- ● Level
- ● 11ft Power Cable, Adapter, and Connector
- ● 5m CAT6 LAN Cable (x2)
- ● POE Injector
- ● M4 32mm Screws (x9) + 1 Spare
- ● Bracket Angle Guide Pins (x4)
Operating System
Windows 10 Home or Pro (64-bit only)
Processor
Intel Core Ultra 5, Intel Core i5 (12th Gen or later), AMD Ryzen 5 (5000 Series or later)
RAM
32 GB (32 GB for Swing Optix® & AI-Trainer)
Graphics
NVIDIA RTX 3060 Ti or equivalent
Graphics Memory
8 GB (VIEW + AI-Trainer Only)
Dedicated Ethernet Ports
1 or more (one required for launch monitor)
Internet Download Speed
25 Mbps or higher
Room Width
13 ft minimum
Ceiling Height
10 ft minimum recommended
Disclaimer: The recommended PC specification is mandatory for data-intensive products like AI Trainer.
Frequently Asked Questions
Don't see what you're looking for? View all our FAQ's here, or reach out to us any time using phone or email.
We recommend a minimum room size of 13 ft wide × 16 ft deep × 10 ft high. This ensures comfortable clearance for your swing and proper sensor coverage from the rear-mounted EYE XR unit.
The Uneekor Al Studio includes the EYE XR front-mounted overhead launch monitor, a pair of Swing Optix® cameras for real-time swing replay, tripods, and 1-year subscriptions to GSPro, Al Trainer, GAME DAY, and our Pro Package software package subscription.
GS Pro, Al Trainer, and GAME DAY is included for 1 year. Our Pro Package subscription is also included at no charge. You can optionally Champion, or Ultimate.
Once your Swing Optix cameras are registered in Launcher, your AI Trainer license will automatically be added to your account and available for activation.
Yes. With a Pro subscription or higher, you can connect to supported third-party golf simulation software for an expanded library of courses and gameplay modes.
The EYE XR is rear-mounted on the ceiling behind the golfer. This keeps the unit completely out of the hitting zone for a clean, safe, and space-efficient setup.
Yes. The EYE XR requires reflective clubface stickers to capture full club data.
Still have questions?
Our team has helped thousands of golfers build their perfect simulator setup. We're here to help you find the right fit.
Free consultation
No pressure, no obligation
Expert setup guidance
Room layout, mounting, and configuration
Financing options
Flexible plans starting at $208/mo
